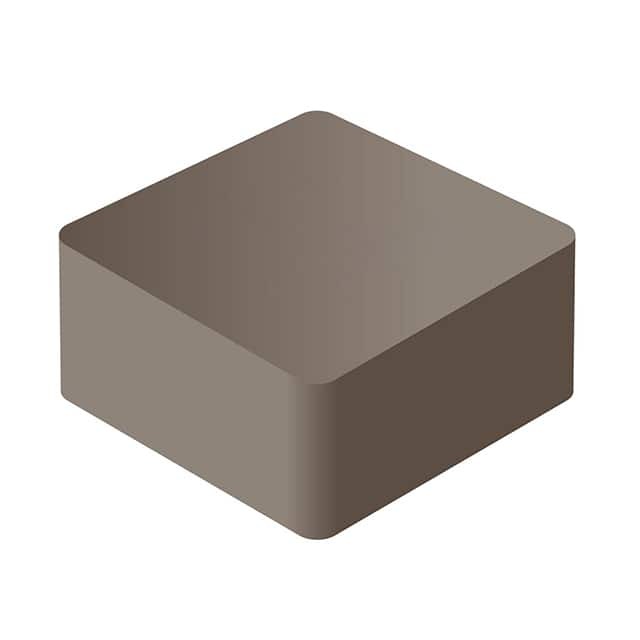

SRP4020FA-3R3M

SKU: 113745

Manufacturer: Bourns

Inductor Power Shielded Wirewound 3.3uH 20% 100KHz 15Q-Factor Metal Alloy Powder 5.5A 0.0383Ohm DCR Automotive T/R

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Metal Alloy Powder
Inductance (H)	3.3u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	5.5(Typ)
Maximum Saturation Current (A)	5.3(Typ)
Maximum DC Resistance (Ohm)	0.0383
Minimum Quality Factor	15
Minimum Self Resonant Frequency (Hz)	26M(Typ)
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	155
Packing Method	Tape and Reel
Length (mm)	4.3
Terminal Form	Surface Mount
Depth (mm)	4.3
