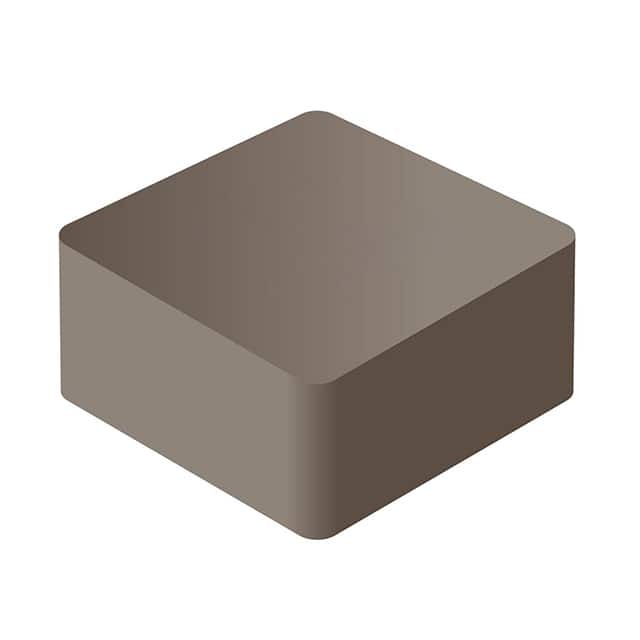

SRP4020FA-1R5M

SKU: 156370

Manufacturer: Bourns

Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 20Q-Factor Metal Alloy Powder 9.1A 0.0158Ohm DCR Automotive T/R

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Metal Alloy Powder
Inductance (H)	1.5u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	9.1(Typ)
Maximum Saturation Current (A)	7.5(Typ)
Maximum DC Resistance (Ohm)	0.0158
Minimum Quality Factor	20
Minimum Self Resonant Frequency (Hz)	45M(Typ)
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	155
Packing Method	Tape and Reel
Length (mm)	4.3
Terminal Form	Surface Mount
Depth (mm)	4.3
