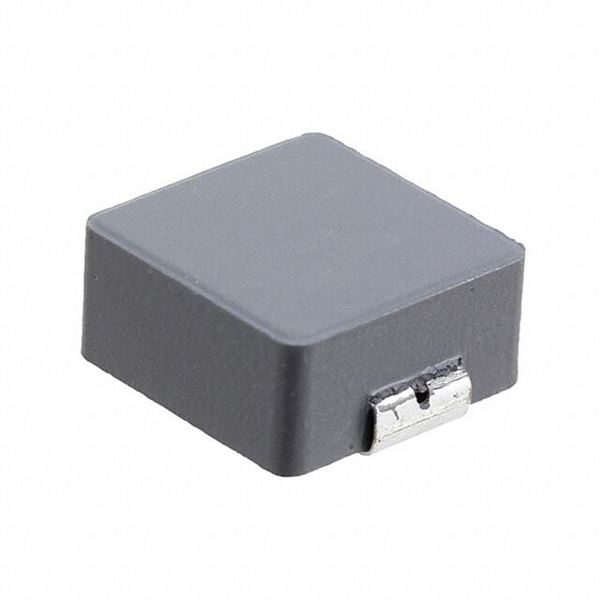

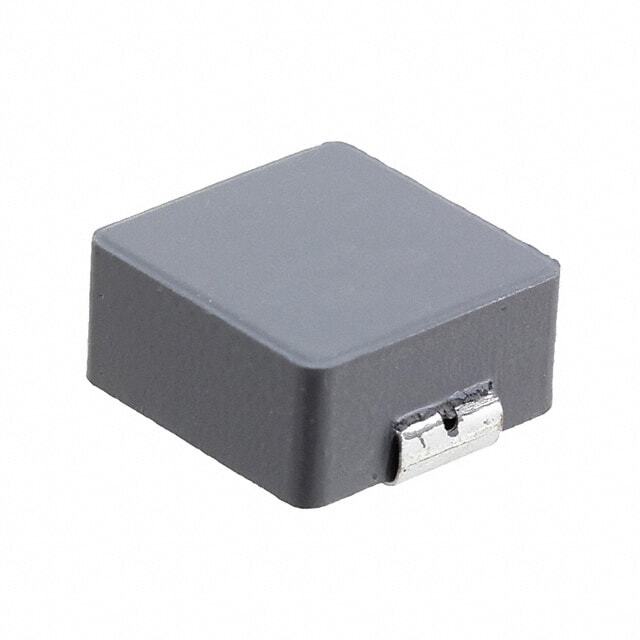

SRP1265A-5R6M

SKU: 92472

Manufacturer: Bourns

Inductor Power Shielded Wirewound 5.6uH 20% 100KHz 20Q-Factor Carbonyl Powder 12.5A 0.01Ohm DCR Automotive T/R

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Yes
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Carbonyl Powder
Inductance (H)	5.6u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	12.5
Maximum Saturation Current (A)	23
Maximum DC Resistance (Ohm)	0.01
Minimum Quality Factor	20
Quality Test Frequency (Hz)	100K
Minimum Self Resonant Frequency (Hz)	15M(Typ)
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	14
Terminal Form	Surface Mount
Depth (mm)	12.8
