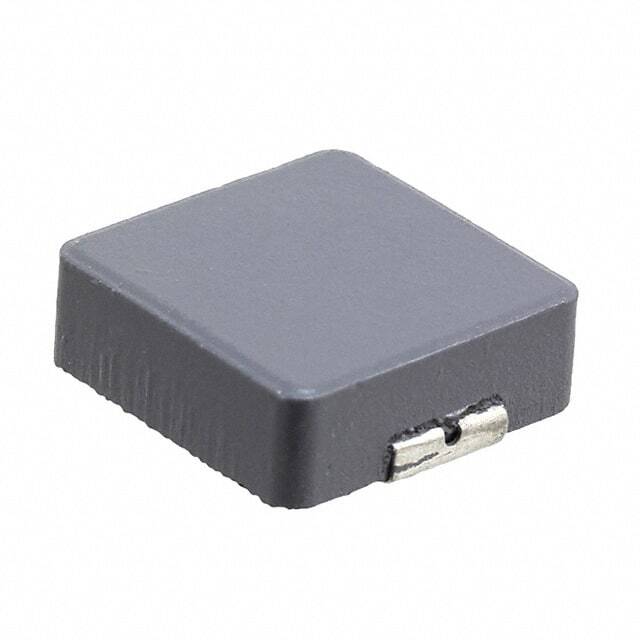

SRP1245A-R47M

SKU: 43129

Manufacturer: Bourns

Inductor Power Shielded Wirewound 0.47uH 20% 100KHz 20Q-Factor Carbonyl Powder 38A 0.0011Ohm DCR Automotive T/R

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Yes
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Carbonyl Powder
Inductance (H)	0.47u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	38
Maximum Saturation Current (A)	65
Maximum DC Resistance (Ohm)	0.0011
Minimum Quality Factor	20
Quality Test Frequency (Hz)	100K
Minimum Self Resonant Frequency (Hz)	70M(Typ)
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	14
Terminal Form	Surface Mount
Depth (mm)	12.8
