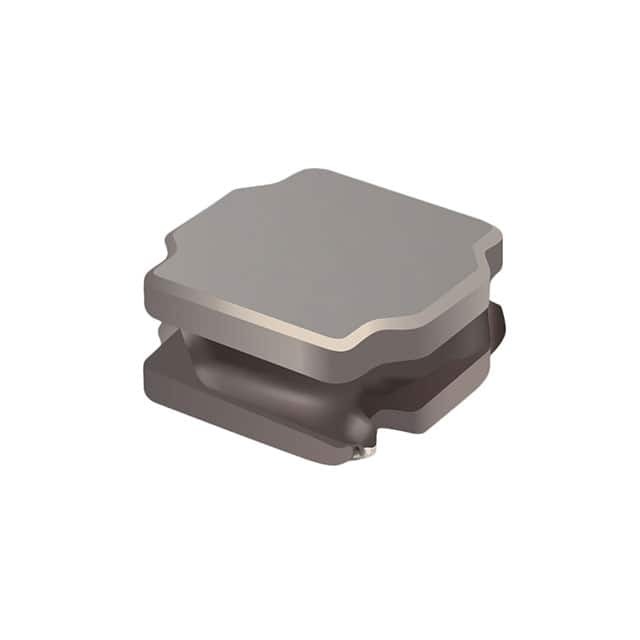

SRN8040TA-470M

SKU: 113744

Manufacturer: Bourns

Inductor Power Semi-Shielded Wirewound 47uH 20% 1MHz 12Q-Factor Ferrite 2A 0.135Ohm DCR 3131 Automotive T/R

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Yes
Type	Power
Technology	Wirewound
Protection Style	Semi-Shielded
Core Body Material	Ferrite
Inductance (H)	47u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	2(Typ)
Maximum Saturation Current (A)	2.2(Typ)
Maximum DC Resistance (Ohm)	0.135(Typ)
Minimum Quality Factor	12
Quality Test Frequency (Hz)	1M
Minimum Self Resonant Frequency (Hz)	12M(Typ)
Number of Terminals	2
Case Size	3131
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	8.3
Terminal Form	Surface Mount
Depth (mm)	8.3
