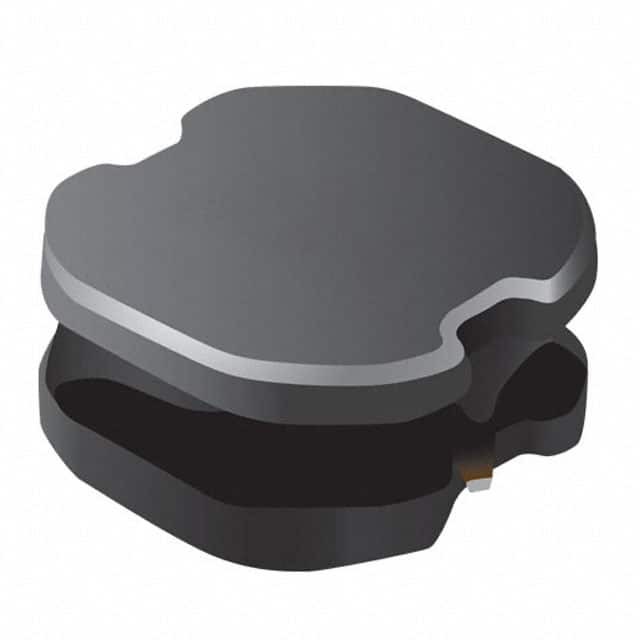

SRN8040-101M

SKU: 21745

Manufacturer: Bourns

Inductor Power Semi-Shielded Wirewound 100uH 20% 100KHz 10Q-Factor Ferrite 1A 0.4Ohm DCR T/R

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Semi-Shielded
Core Body Material	Ferrite
Inductance (H)	100u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	1
Maximum Saturation Current (A)	1
Maximum DC Resistance (Ohm)	0.4
Minimum Quality Factor	10
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	6M(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	8.35
Terminal Form	Surface Mount
Depth (mm)	8.1
