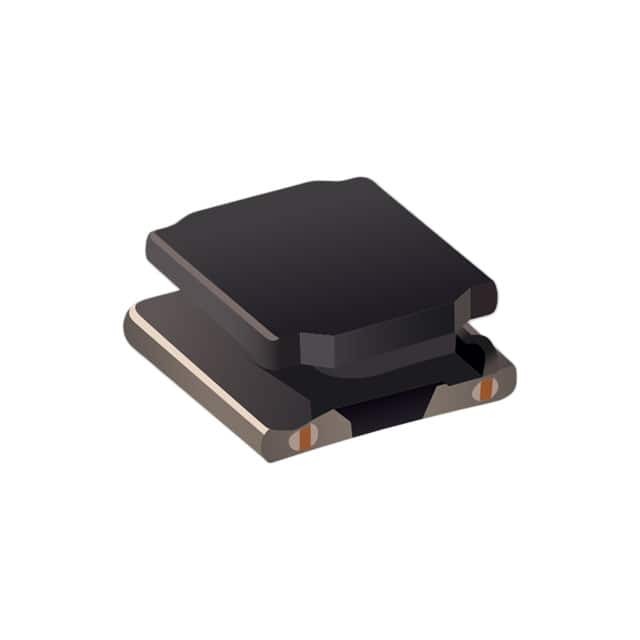

SRN4018TA-220M

SKU: 156367

Manufacturer: Bourns

Inductor Power Semi-Shielded Wirewound 22uH 20% 100KHz 10Q-Factor Ferrite 0.9A 0.29Ohm DCR 1515 Automotive T/R

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Semi-Shielded
Core Body Material	Ferrite
Inductance (H)	22u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.9(Typ)
Maximum Saturation Current (A)	0.9(Typ)
Maximum DC Resistance (Ohm)	0.29(Typ)
Minimum Quality Factor	10
Quality Test Frequency (Hz)	100K
Minimum Self Resonant Frequency (Hz)	20M(Typ)
Number of Terminals	2
Case Size	1515
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.2
Depth (mm)	4.2
