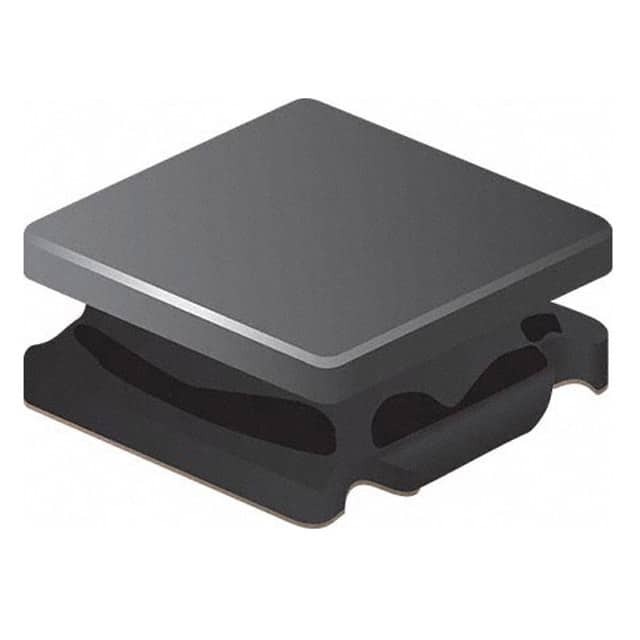

SRN4018-150M

SKU: 92471

Manufacturer: Bourns

Inductor Power Semi-Shielded Wirewound 15uH 20% 100KHz 11Q-Factor Ferrite 1A 0.264Ohm DCR 1515 T/R

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Semi-Shielded
Core Body Material	Ferrite
Inductance (H)	15u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	1
Maximum Saturation Current (A)	1.1
Maximum DC Resistance (Ohm)	0.264
Minimum Quality Factor	11
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	18M(Typ)
Number of Terminals	2
Case Size	1515
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.2
Terminal Form	Surface Mount
Depth (mm)	4.2
