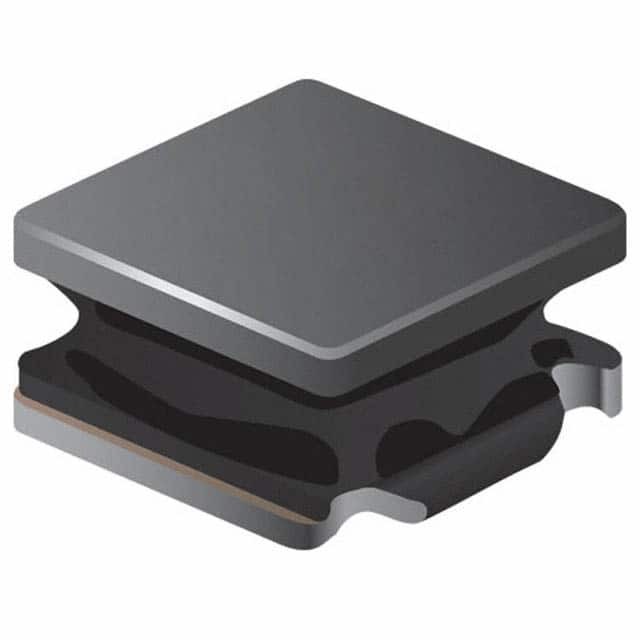

SRN3015-3R3M

SKU: 120878

Manufacturer: Bourns

Inductor Power Semi-Shielded Wirewound 3.3uH 20% 1MHz 14Q-Factor Ferrite 1.6A 0.112Ohm DCR 1212 T/R

112480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Semi-Shielded
Core Body Material	Ferrite
Inductance (H)	3.3u
Tolerance	20%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	1.6
Maximum Saturation Current (A)	1.4
Maximum DC Resistance (Ohm)	0.112
Minimum Quality Factor	14
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	75M(Typ)
Number of Terminals	2
Case Size	1212
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.1
Terminal Form	Surface Mount
Depth (mm)	3.1
