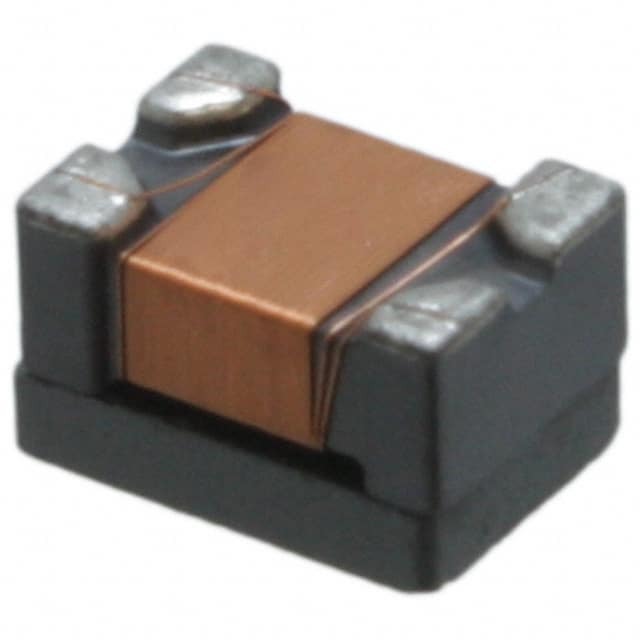

SRF4532-510Y

SKU: 21743

Manufacturer: Bourns

Common Mode Chokes Dual 51uH 2kOhm 100kHz 0.2A 3.5Ohm DCR SMD T/R

90 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Data Line/Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	51u
Impedance (Ohm)	2k@10MHz
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.2
Maximum DC Resistance (Ohm)	3.5
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	50VDC
Withstand Voltage	125VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.7
Depth (mm)	3.4
