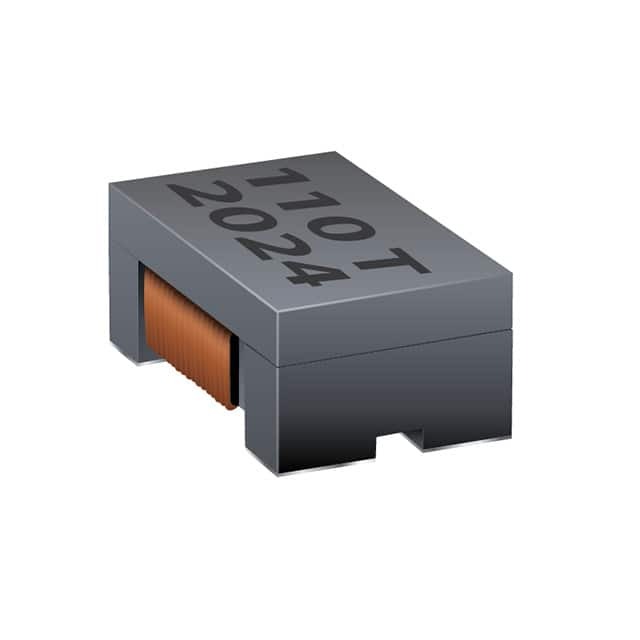

SRF4530A-510Y

SKU: 31047

Manufacturer: Bourns

Common Mode Chokes Dual 51uH 3.5kOhm 100kHz 0.23A 1Ohm DCR SMD Automotive

1290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	Data Line/Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	51u
Leakage Inductance (H)	250n
Impedance (Ohm)	3.5k@10MHz
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.23
Maximum DC Resistance (Ohm)	1
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	50VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-55
Operating Temperature-Max	150
Length (mm)	4.7
Depth (mm)	3.4
