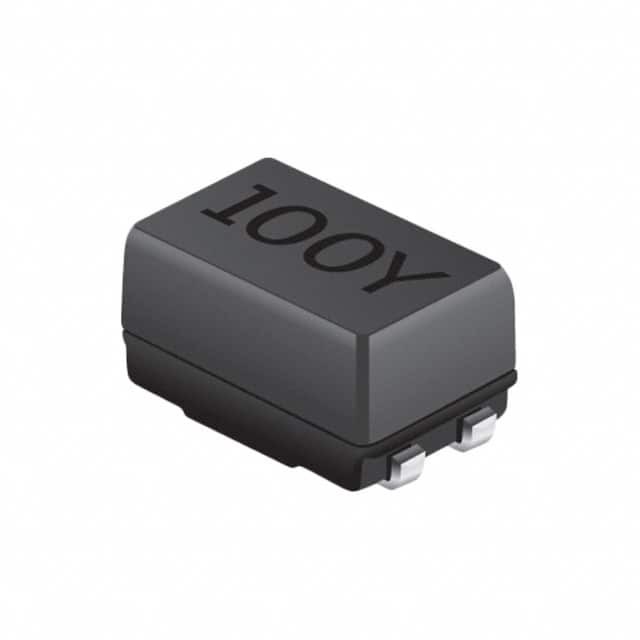

SRF0905A-472Y Bourns

SRF0905A-472Y

SKU: 120874

Manufacturer: Bourns

Common Mode Chokes Dual 4700uH 4kOhm 100kHz 0.4A 0.9Ohm DCR SMD Automotive T/R

Download sample

Request Free Samples

1580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Yes
Type	Power Line
Configuration	Dual
Number of Lines	2
Inductance (H)	4700u
Impedance (Ohm)	4k(Min)
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.4
Maximum DC Resistance (Ohm)	0.9
Voltage Rating	80VDC
Withstand Voltage	500VAC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	9.5
Depth (mm)	6.3
