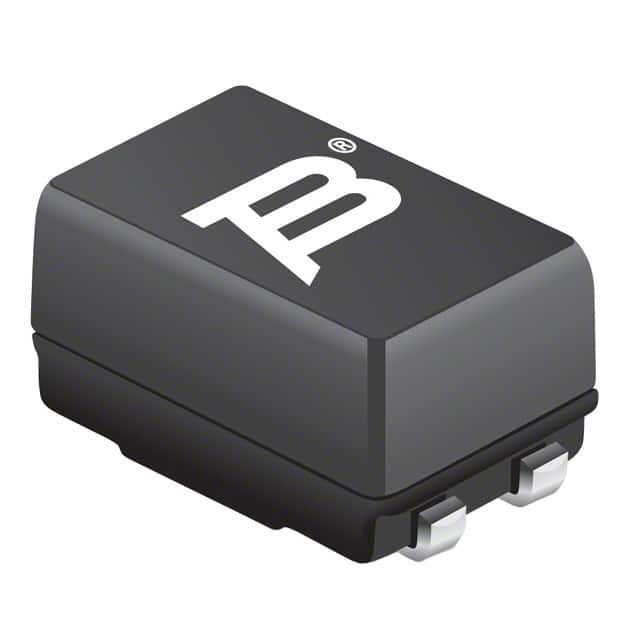

SRF0905-471Y Bourns

SRF0905-471Y

SKU: 64331

Manufacturer: Bourns

Common Mode Chokes Dual 470uH 1kOhm 100kHz 1.1A 0.14Ohm DCR SMD T/R

Download sample

Request Free Samples

1940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power Line
Configuration	Dual
Number of Lines	2
Inductance (H)	470u
Leakage Inductance (H)	120n(Max)
Impedance (Ohm)	1k(Min)
Test Frequency (Hz)	100k
Maximum DC Current (A)	1.1
Maximum DC Resistance (Ohm)	0.14
Voltage Rating	80VDC
Withstand Voltage	500VAC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	9.5
Depth (mm)	6.3
