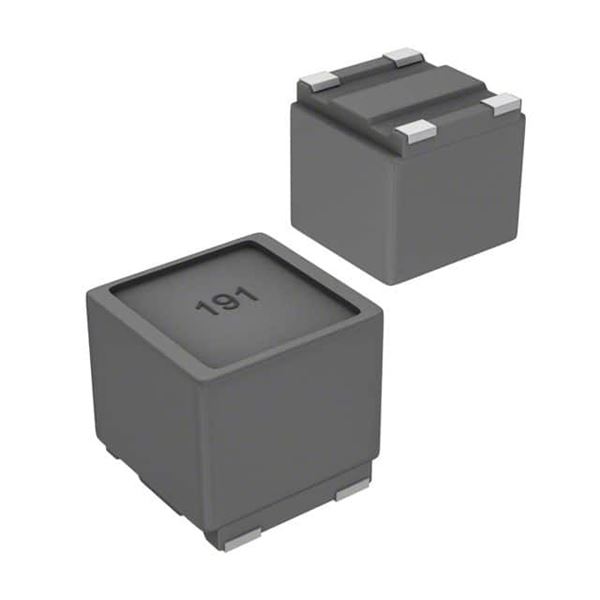

SRF0504-402Y Bourns

SRF0504-402Y

SKU: 21741

Manufacturer: Bourns

Common Mode Chokes Dual 2.8uH 4kOhm 100kHz 0.2A 0.3Ohm DCR SMD T/R

Download sample

Request Free Samples

3770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power Line
Configuration	Dual
Number of Lines	2
Inductance (H)	2.8u
Impedance (Ohm)	4k@100MHz
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.2
Maximum DC Resistance (Ohm)	0.3
Voltage Rating	50VDC
Withstand Voltage	125VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.2
Depth (mm)	5.2
