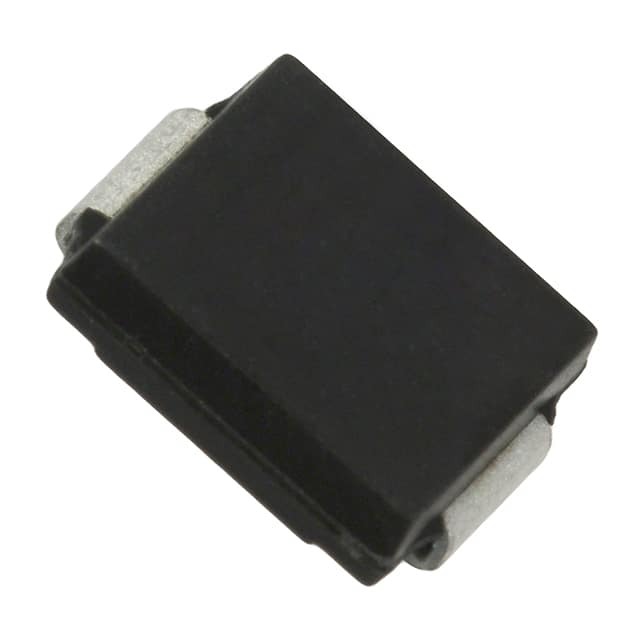

SMLJ58A

SKU: 64082

Manufacturer: Bourns

TVS Diode Single Uni-Dir 58V 3KW 2-Pin SMC

3710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	64.4
Maximum Clamping Voltage (V)	93.6
Maximum Reverse Stand-Off Voltage (V)	58
Maximum Peak Pulse Current (A)	32
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	3000(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Pin Count	2
Standard Package Method	DO-214-AB
Original Package	SMC
Terminal Form	Surface Mount
Package Height	2.42(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
