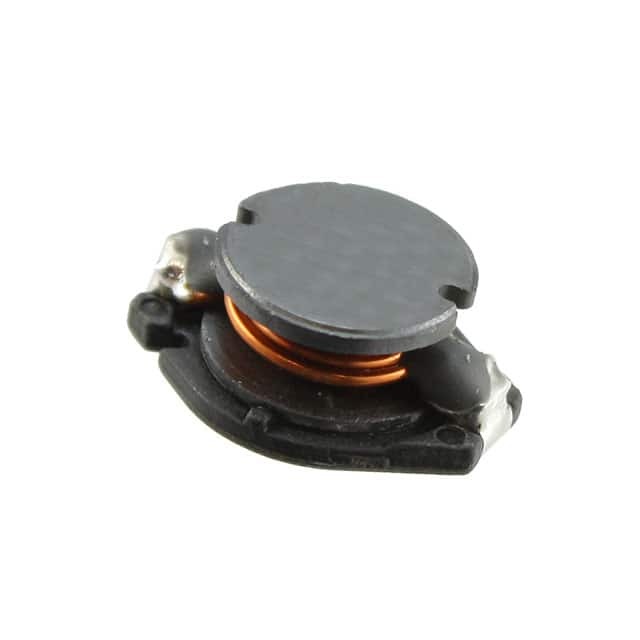

SDR1005-682KL

SKU: 63837

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 6800uH 10% 1KHz 105Q-Factor Ferrite 0.11A 30Ohm DCR T/R

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
Automotive	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	6800u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.11
Maximum Saturation Current (A)	0.12(Typ)
Maximum DC Resistance (Ohm)	30
Minimum Quality Factor	105
Quality Test Frequency (Hz)	171K
Minimum Self Resonant Frequency (Hz)	1M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	12.9
Terminal Form	Surface Mount
Depth (mm)	10.2
