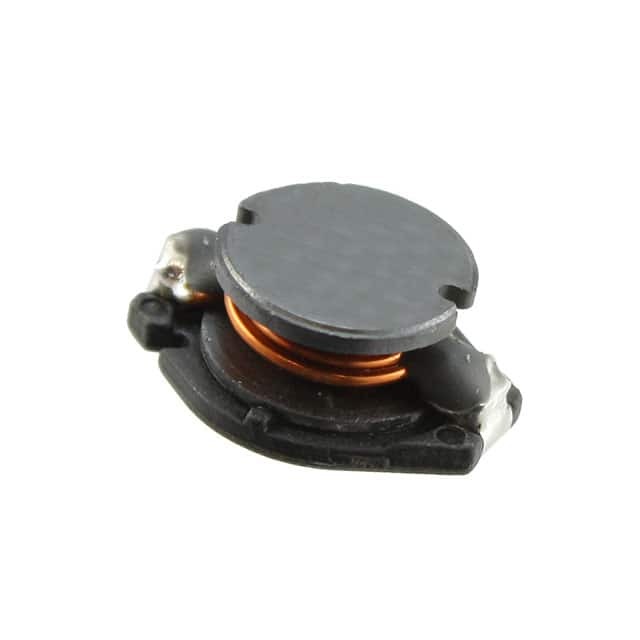

SDR1005-332KL

SKU: 91949

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 3300uH 10% 1KHz 106Q-Factor Ferrite 0.16A 14Ohm DCR T/R

4710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
Automotive	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	3300u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.16
Maximum Saturation Current (A)	0.18(Typ)
Maximum DC Resistance (Ohm)	14
Minimum Quality Factor	106
Quality Test Frequency (Hz)	128K
Minimum Self Resonant Frequency (Hz)	1M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	12.9
Terminal Form	Surface Mount
Depth (mm)	10.2
