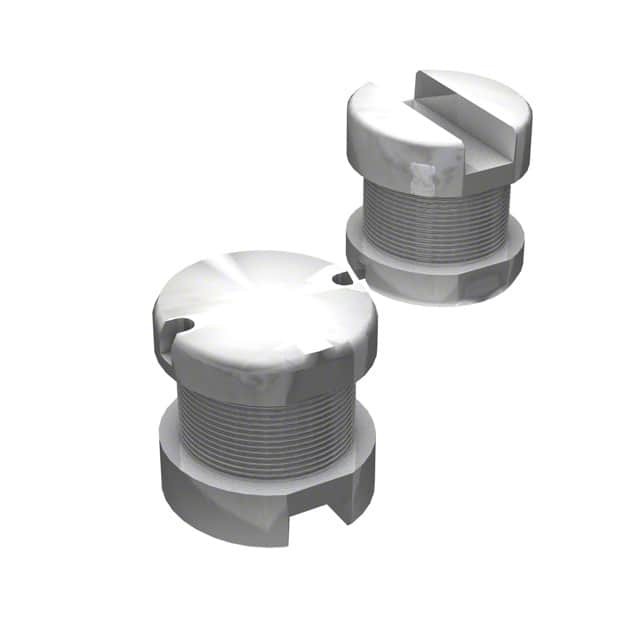

SDR0604-680KL

SKU: 28423

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 68uH 10% 1KHz 22Q-Factor Ferrite 0.62A 0.52Ohm DCR Automotive T/R

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	68u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.62
Maximum Saturation Current (A)	0.84(Typ)
Maximum DC Resistance (Ohm)	0.52
Minimum Quality Factor	22
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	10M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Product Diameter (mm)	5.8
Terminal Form	Surface Mount
