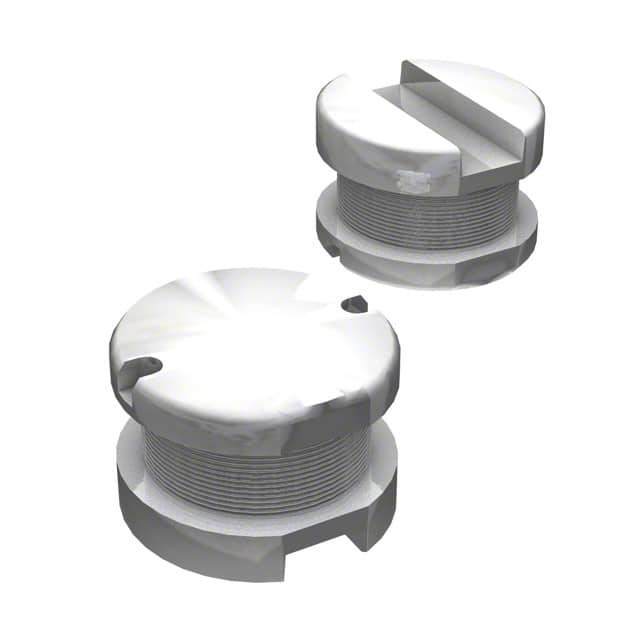

SDR0603-4R7ML

SKU: 127343

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 4.7uH 20% 1KHz 20Q-Factor Ferrite 1.8A 0.07Ohm DCR Automotive T/R

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	4.7u
Tolerance	20%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	1.8
Maximum Saturation Current (A)	2.2(Typ)
Maximum DC Resistance (Ohm)	0.07
Minimum Quality Factor	20
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	56M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Product Diameter (mm)	5.8
Terminal Form	Surface Mount
