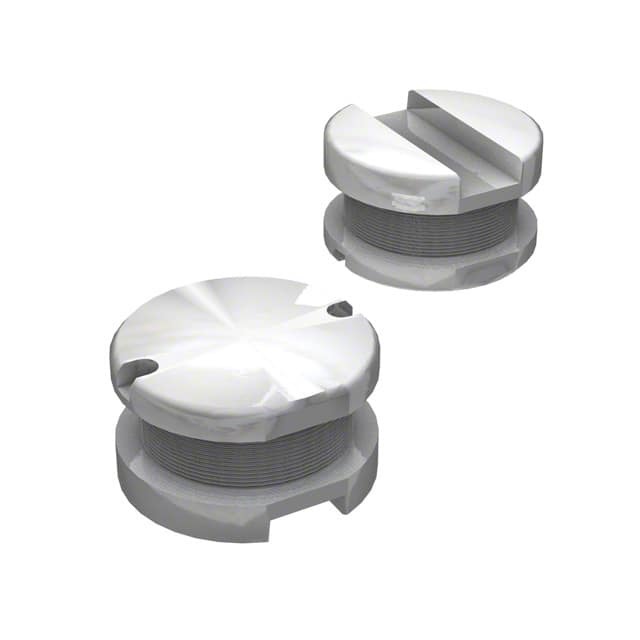

SDR0503-153JL

SKU: 134541

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 15000uH 5% 1KHz 30Q-Factor Ferrite 0.02A 168Ohm DCR Automotive T/R

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	15000u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	5%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.02
Maximum Saturation Current (A)	0.032(Typ)
Maximum DC Resistance (Ohm)	168
Minimum Quality Factor	30
Quality Test Frequency (Hz)	79.6K
Minimum Self Resonant Frequency (Hz)	1M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.3
Terminal Form	Surface Mount
Depth (mm)	5.1
