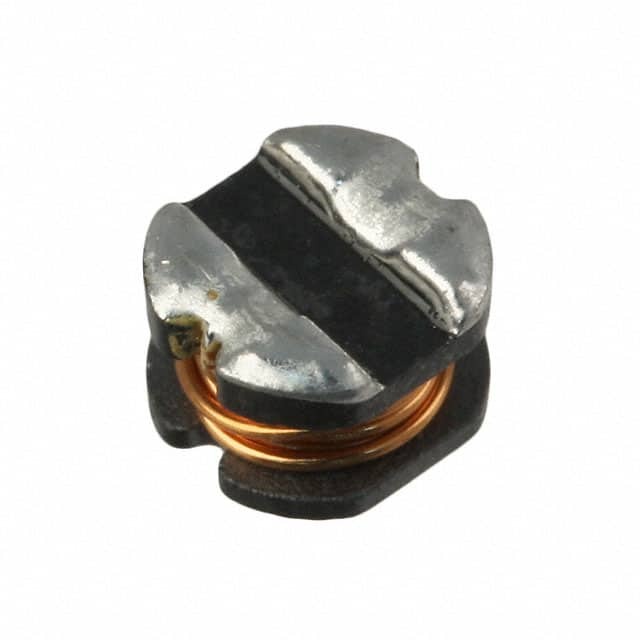

    SDR0403-3R3ML

    SKU: 127341
    Manufacturer: Bourns
    Inductor Power Unshielded Wirewound 3.3uH 20% 1KHz 28Q-Factor Ferrite 2.15A 0.058Ohm DCR T/R
    3200 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8504.50.80.00
    Automotive No
    PPAP No
    Type Power
    Technology Wirewound
    Protection Style Unshielded
    Core Body Material Ferrite
    Inductance (H) 3.3u
    Inductance Decrease Percentage @ Isat (%) 10
    Tolerance 20%
    Inductance Test Frequency (Hz) 1K
    Maximum DC Current (A) 2.15
    Maximum Saturation Current (A) 3(Typ)
    Maximum DC Resistance (Ohm) 0.058
    Minimum Quality Factor 28
    Quality Test Frequency (Hz) 7.96M
    Minimum Self Resonant Frequency (Hz) 65M
    Number of Terminals 2
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Packing Method Tape and Reel
    Length (mm) 4.8
    Terminal Form Surface Mount
    Depth (mm) 4.3
