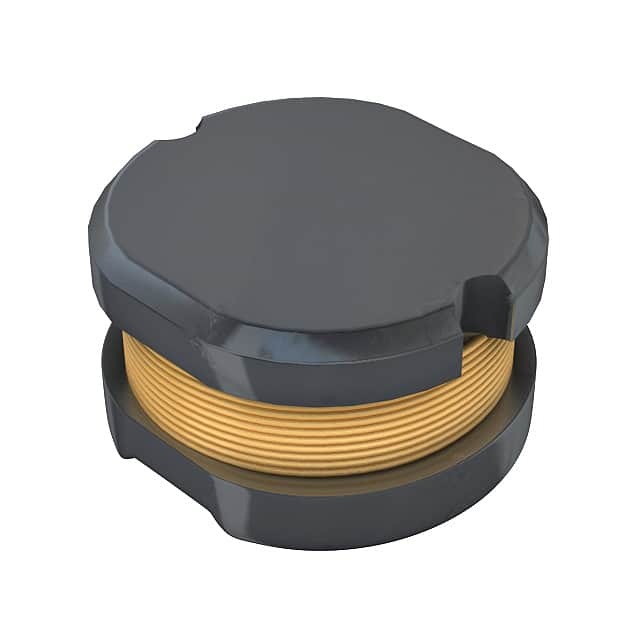

SDR0302-2R7ML

SKU: 87459

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 2.7uH 20% 100KHz 22Q-Factor Ferrite 1.5A 0.1Ohm DCR Automotive T/R

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Unknown
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	2.7u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	1.5
Maximum Saturation Current (A)	1.7(Typ)
Maximum DC Resistance (Ohm)	0.1
Minimum Quality Factor	22
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	72M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.3
Terminal Form	Surface Mount
Depth (mm)	3.1
