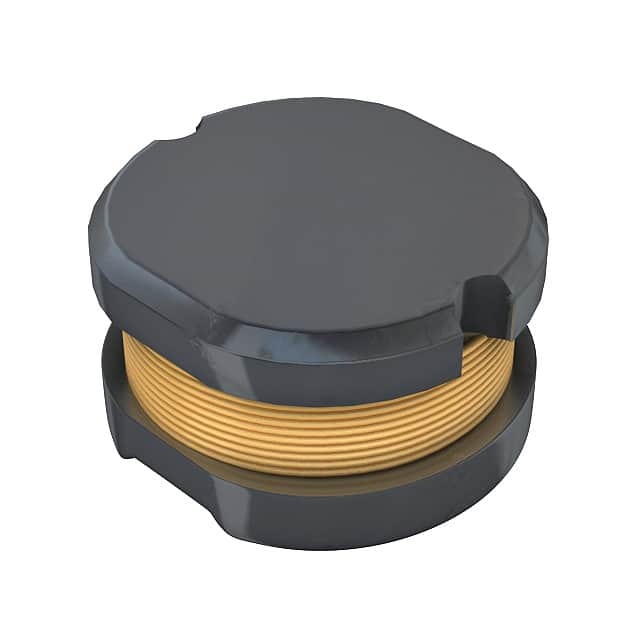

SDR0302-100ML

SKU: 113234

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 10uH 20% 100KHz 18Q-Factor Ferrite 0.8A 0.25Ohm DCR Automotive T/R

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	10u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.8
Maximum Saturation Current (A)	0.9(Typ)
Maximum DC Resistance (Ohm)	0.25
Minimum Quality Factor	18
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	34M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.3
Terminal Form	Surface Mount
Depth (mm)	3.1
