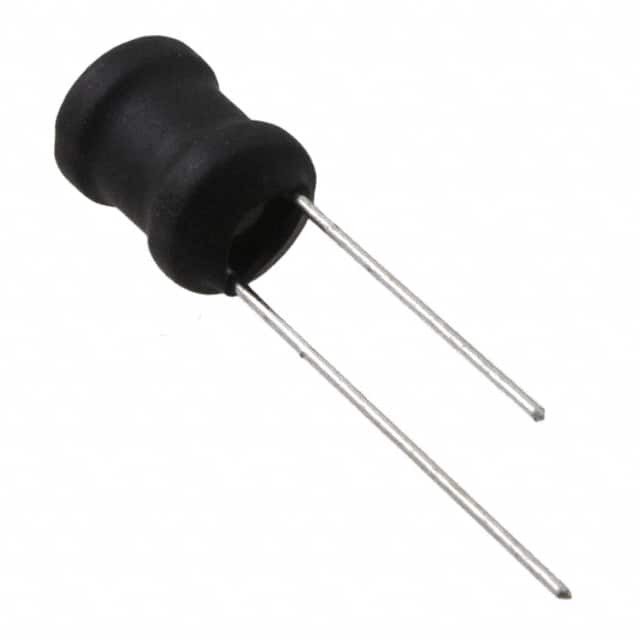

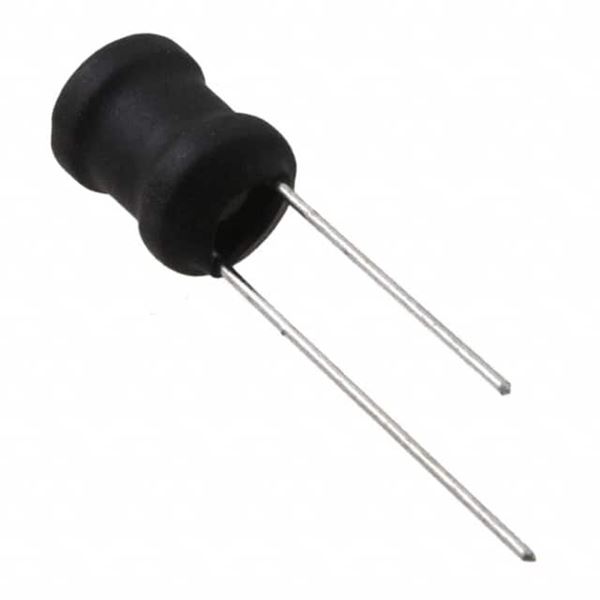

RLB9012-332KL

SKU: 63732

Manufacturer: Bourns

Inductor Power Wirewound 3300uH 10% 1KHz 15Q-Factor Ferrite 0.29A 9.1Ohm DCR RDL Bag

730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	3300u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.29
Maximum DC Resistance (Ohm)	9.1
Minimum Quality Factor	15
Quality Test Frequency (Hz)	252K
Minimum Self Resonant Frequency (Hz)	0.6M
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Bag
Product Diameter (mm)	9
