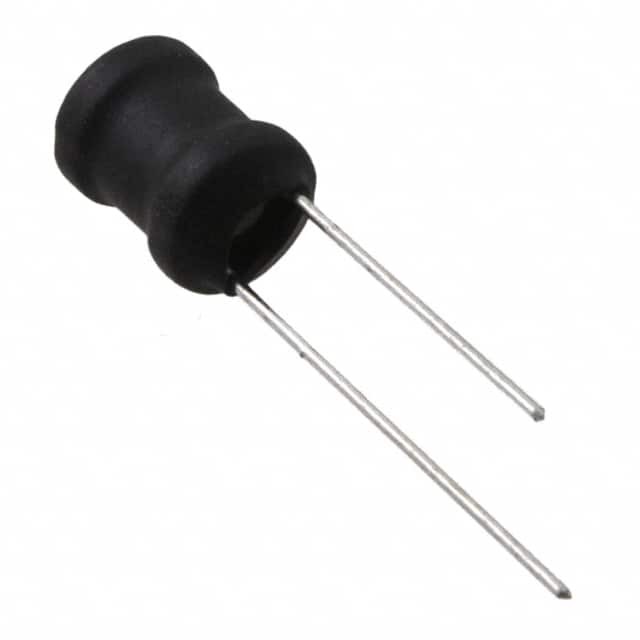

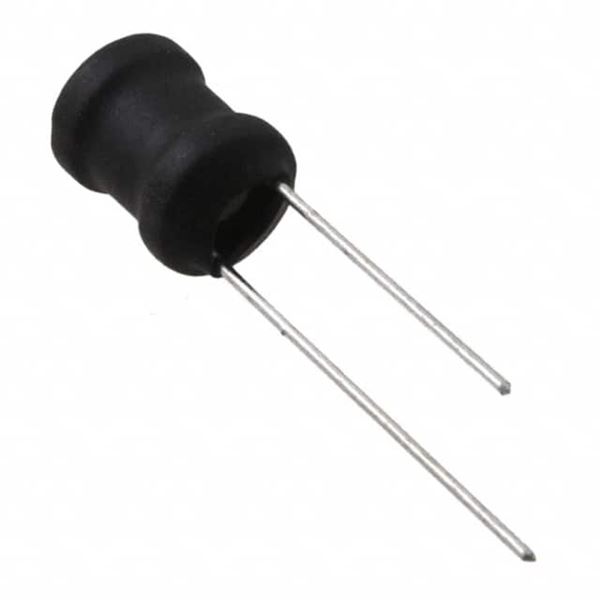

RLB9012-150KL

SKU: 42438

Manufacturer: Bourns

Inductor Power Wirewound 15uH 10% 1KHz 50Q-Factor Ferrite 2.9A 0.056Ohm DCR RDL Bag

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	15u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	2.9
Maximum DC Resistance (Ohm)	0.056
Minimum Quality Factor	50
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	12M
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Bag
Product Diameter (mm)	9
