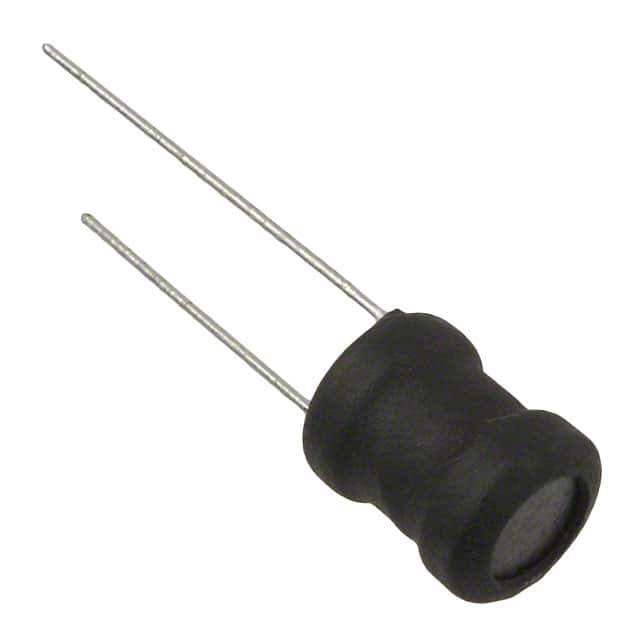

RLB0914-3R3ML

SKU: 120243

Manufacturer: Bourns

Inductor Power Wirewound 3.3uH 20% 7.96MHz 20Q-Factor Ferrite 3.6A 0.027Ohm DCR RDL Bag

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	3.3u
Tolerance	20%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	3.6(Typ)
Maximum Saturation Current (A)	11.3(Typ)
Maximum DC Resistance (Ohm)	0.027
Minimum Quality Factor	20
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	70M
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Bag
Product Diameter (mm)	9.2
