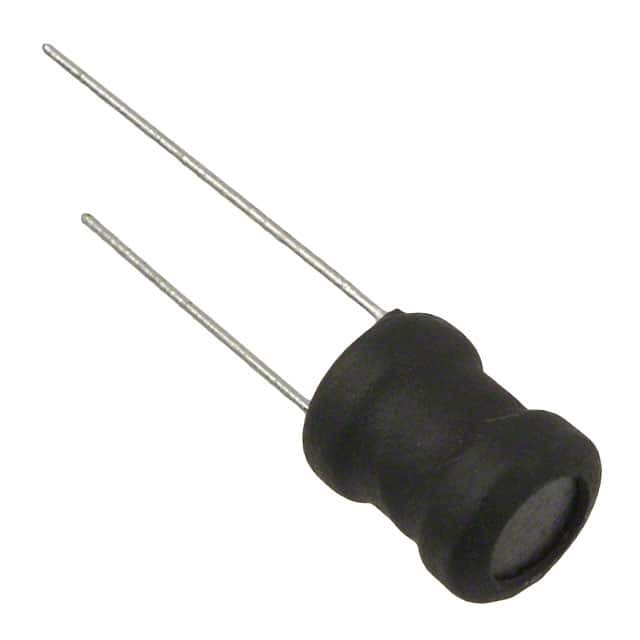

RLB0914-100KL

SKU: 127224

Manufacturer: Bourns

Inductor Power Wirewound 10uH 10% 2.52MHz 50Q-Factor Ferrite 2.7A 0.048Ohm DCR RDL Bag

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	10u
Tolerance	10%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	2.7(Typ)
Maximum Saturation Current (A)	6.7(Typ)
Maximum DC Resistance (Ohm)	0.048
Minimum Quality Factor	50
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	20M
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Bag
Product Diameter (mm)	9.2
