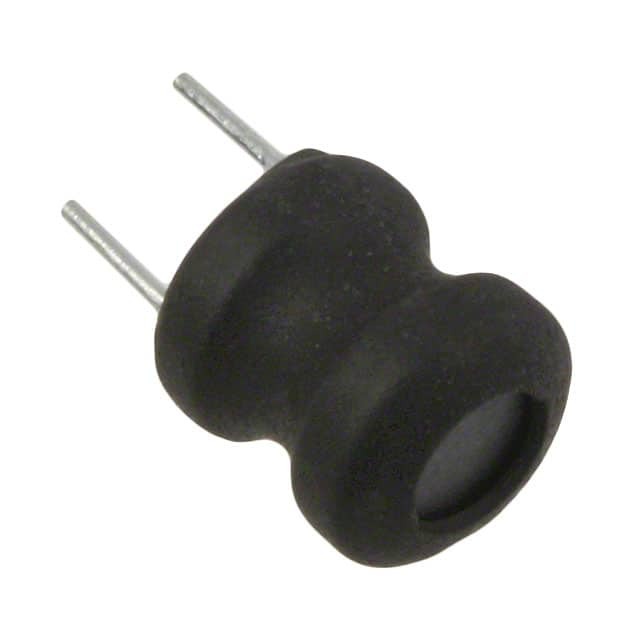

RLB0912-220KL

SKU: 148564

Manufacturer: Bourns

Inductor Power Wirewound 22uH 10% 1KHz 50Q-Factor Ferrite 2.1A 0.086Ohm DCR RDL Bag

2770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	22u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	2.1(Typ)
Maximum Saturation Current (A)	2.5(Typ)
Maximum DC Resistance (Ohm)	0.086
Minimum Quality Factor	50
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	17M
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Bag
Product Diameter (mm)	9.2
