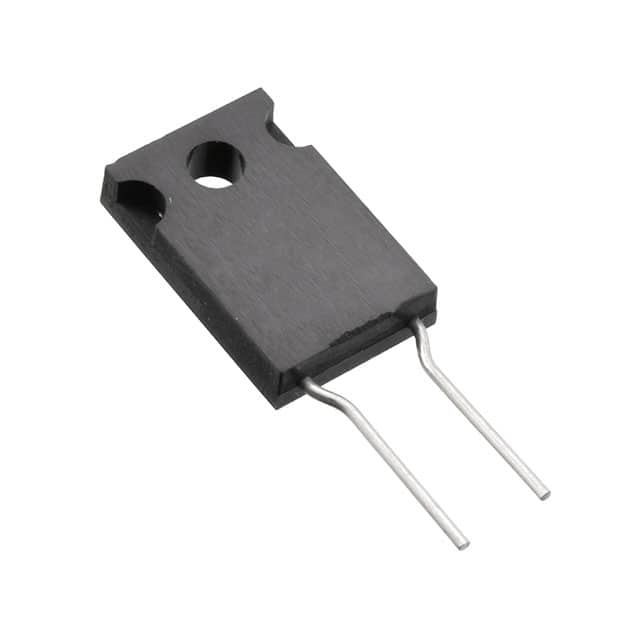

PWR221T-30-2002F

SKU: 52247

Manufacturer: Bourns

Res Thick Film 20K Ohm 1% 2.25/30W ±100ppm/°C Epoxy TO-220 RDL Automotive Tube

3610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Automotive	Yes
PPAP	Yes
Resistance Value (Ohm)	20K
Tolerance	1%
Voltage Rating-Max (V)	250
Power Rating (W)	2.25
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	150
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	25 to 150
Fail Safe Fusible Resistor	No
Flame-Proof Support	No
Case Style	Epoxy
Terminal Form	Radial
Number of Terminals	2
Terminal Pitch (mm)	5.08
Termination Forming	Formed
Packing Method	Tube
Package Type	TO-220
Package Shape	Rectangular
Case Code - in	TO-220
Length (mm)	10.41
Depth (mm)	3.18
Height (mm)	16.26
Lead Diameter (mm)	0.72
Lead Length (mm)	10.16
Seated Plane Height (mm)	18.8
