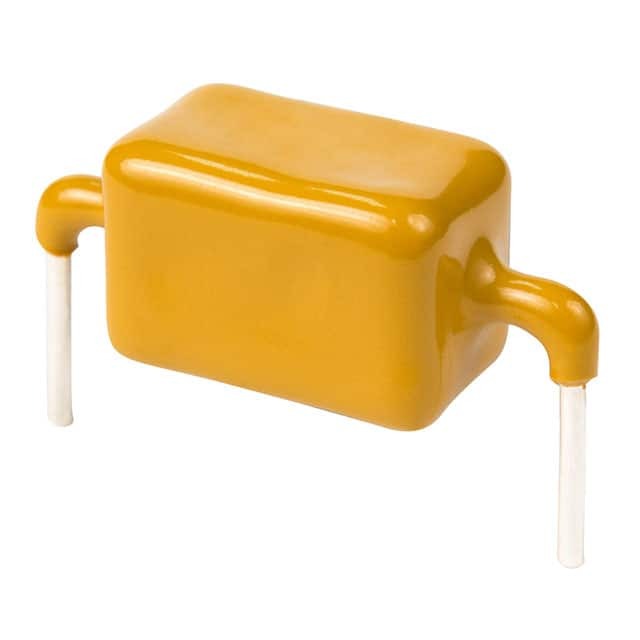

PTVS6-430C-TH

SKU: 73284

Manufacturer: Bourns

TVS Diode Single Bi-Dir 430V 2-Pin

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	440
Maximum Clamping Voltage (V)	580(Typ)
Maximum Reverse Stand-Off Voltage (V)	430
Maximum Peak Pulse Current (A)	6000
Maximum Reverse Leakage Current (uA)	10
Test Current (mA)	10
Capacitance Value (pF)	700(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	125
Pin Count	2
Terminal Form	Through Hole
Package Height	12(Max)
Package Length	26.55
Package Width	11.5(Max)
