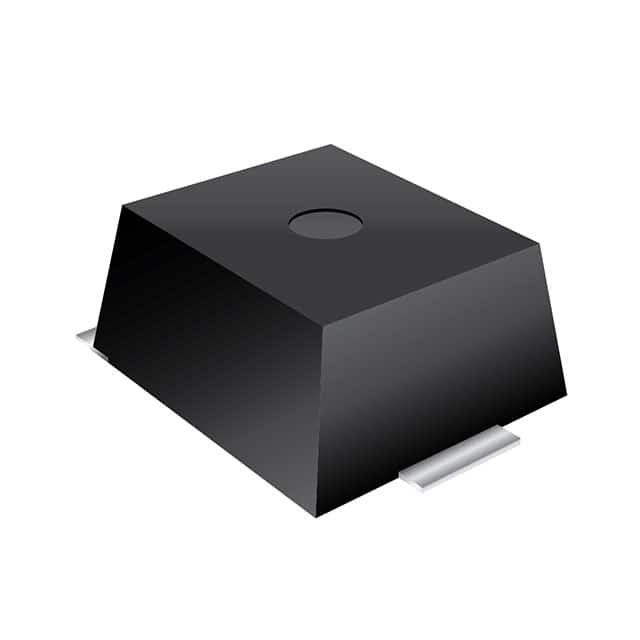

PTVS10-086C-M

SKU: 94437

Manufacturer: Bourns

TVS Diode Single Bi-Dir 86V T/R

1480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	96
Maximum Clamping Voltage (V)	157
Maximum Reverse Stand-Off Voltage (V)	86
Maximum Peak Pulse Current (A)	10000
Maximum Reverse Leakage Current (uA)	10
Test Current (mA)	10
Capacitance Value (pF)	5000(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	125
