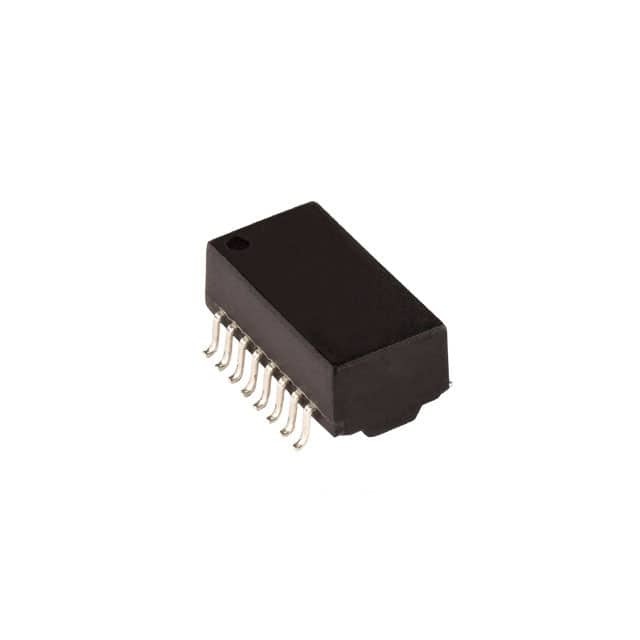

PT61018AAPEL-S

SKU: 66258

Manufacturer: Bourns

Telecom Transformer 1CT:1CT 1.2Ohm Prim. DCR 1.2Ohm Sec. DCR 16 Terminal Gull Wing SMD Automotive

3650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.85.00
Automotive	Yes
PPAP	Yes
Transformer Type	10/100Base-T LAN Transformer
Maximum DCR Primary Side (Ohm)	1.2
Maximum DCR Secondary Side (Ohm)	1.2
High Potential	1500Vrms
Minimum Crosstalk (dB)	-35@60MHz to 100MHz
Minimum CMRR (dB)	-28@60MHz to 100MHz
Minimum Return Loss (dB)	-12@60MHz to 80MHz
Maximum Insertion Loss (dB)	-1.15@1MHz to 100MHz
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	16
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	12.8
Depth (mm)	9.3
