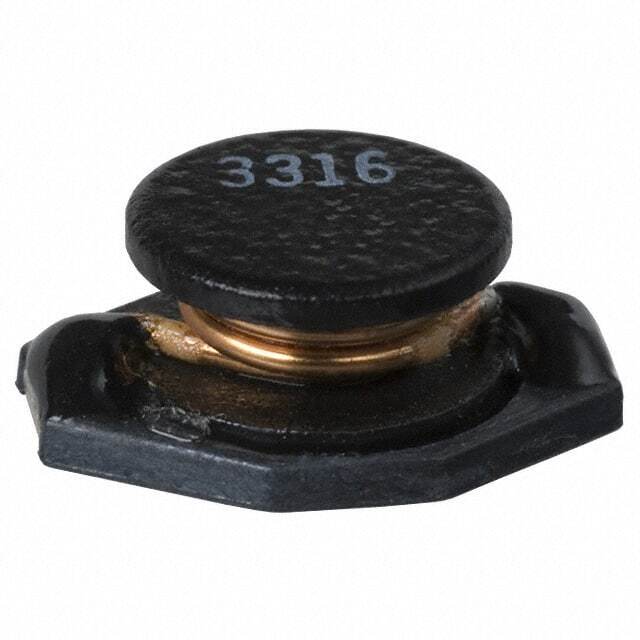

PM3316-330M-RC

SKU: 129887

Manufacturer: Bourns

Inductor Power Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.8A 0.12Ohm DCR T/R

3080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	33u
Tolerance	20%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	1.8
Maximum Saturation Current (A)	2(Typ)
Maximum DC Resistance (Ohm)	0.12
Minimum Quality Factor	25
Quality Test Frequency (Hz)	1M
Minimum Self Resonant Frequency (Hz)	14M
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	12.9
Terminal Form	Surface Mount
Depth (mm)	10.2
