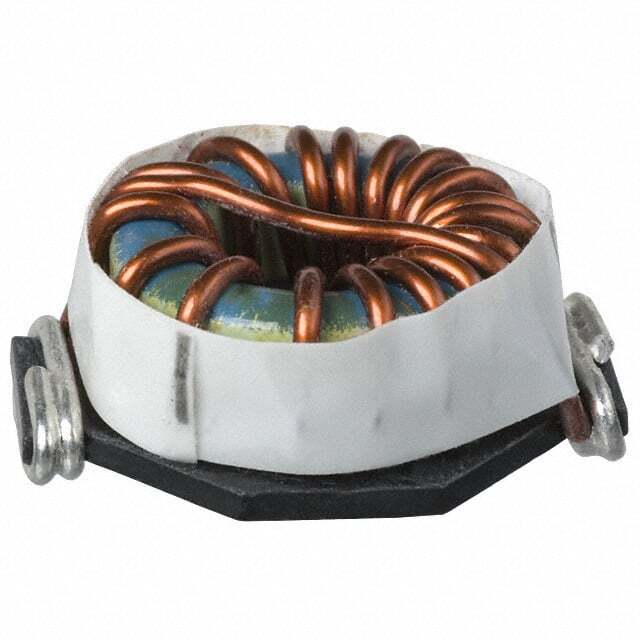

PM2110-101K-RC

SKU: 45082

Manufacturer: Bourns

Inductor Power Toroid 100uH 10% 1KHz Iron 5.4A 0.032Ohm DCR Box

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Toroid
Core Body Material	Iron
Inductance (H)	100u
Inductance Decrease Percentage @ Isat (%)	50
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	5.4
Maximum Saturation Current (A)	5.58
Maximum DC Resistance (Ohm)	0.032
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Box
Length (mm)	31
Terminal Form	Surface Mount
Depth (mm)	25.4
