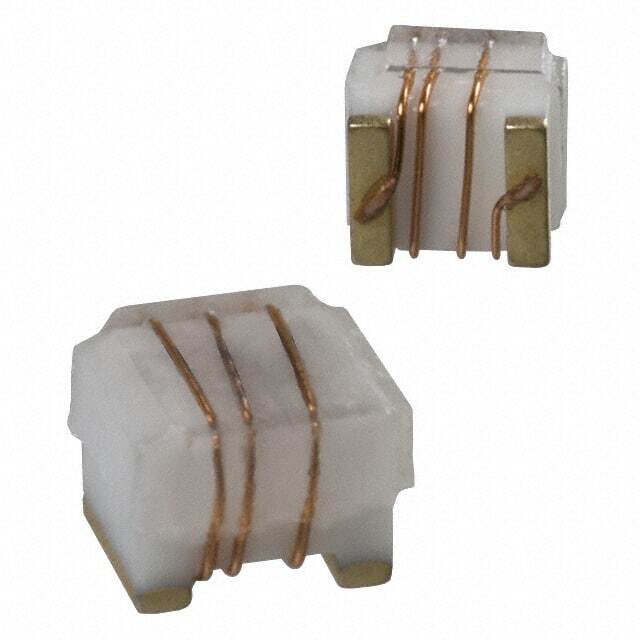

PM1008-4R7K-RC

SKU: 28193

Manufacturer: Bourns

Inductor RF Wirewound 4.7uH 10% 7.9MHz 18Q-Factor Ferrite 0.175A 4Ohm DCR 1008 T/R

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	4.7u
Tolerance	10%
Inductance Test Frequency (Hz)	7.9M
Maximum DC Current (A)	0.175
Maximum DC Resistance (Ohm)	4
Minimum Quality Factor	18
Quality Test Frequency (Hz)	7.9M
Minimum Self Resonant Frequency (Hz)	43M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.2
