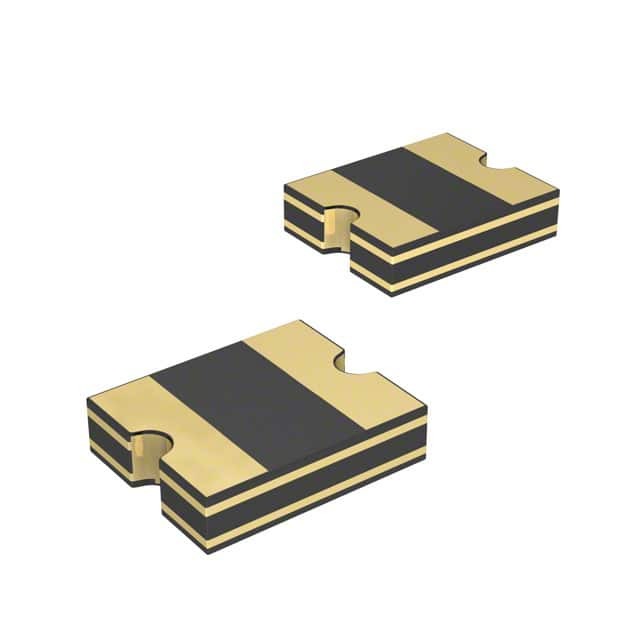

MF-USMF110

SKU: 122702

Manufacturer: Bourns

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 6V 40A 0.6W 1s 0.05Ohm SMD Solder Pad 1210 Automotive

750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	Yes
PPAP	Yes
Voltage Rating-Max	6V
Current Rating-Max(A)	40
Hold Current (A)	1.1
Trip Current (A)	2.2
Minimum Initial Resistance (Ohm)	0.05
Maximum Post Trip Resistance (Ohm)	0.21
Typical Power Dissipation (W)	0.6
Maximum Trip Time (s)	1@5A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Size (mm)	3.43 X 2.8 X 0.85
Length (mm)	3.43(Max)
Depth (mm)	2.8(Max)
Height (mm)	0.85(Max)
Case Code - in	1210
