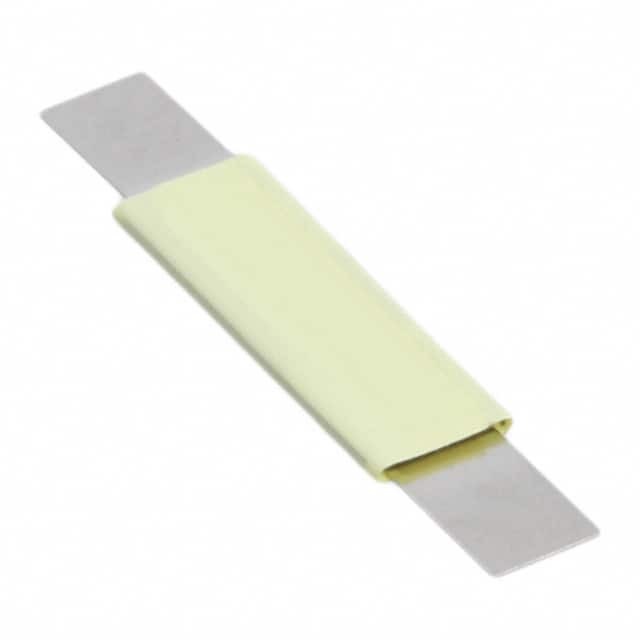

MF-S120

SKU: 108446

Manufacturer: Bourns

PTC Resettable Fuse 1.2A(hold) 2.7A(trip) 15V 100A 1.2W 5s 0.085Ohm SMD Solder Pad 7.1 X 5.2 X 1mm Bulk

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Voltage Rating-Max	15V
Current Rating-Max(A)	100
Hold Current (A)	1.2
Trip Current (A)	2.7
Minimum Initial Resistance (Ohm)	0.085
Maximum Initial Resistance (Ohm)	0.16
Maximum Post Trip Resistance (Ohm)	0.22
Typical Power Dissipation (W)	1.2
Maximum Trip Time (s)	5@6A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bulk
Size (mm)	7.1 X 5.2 X 1
Length (mm)	7.1(Max)
Depth (mm)	5.2(Max)
Height (mm)	1(Max)
