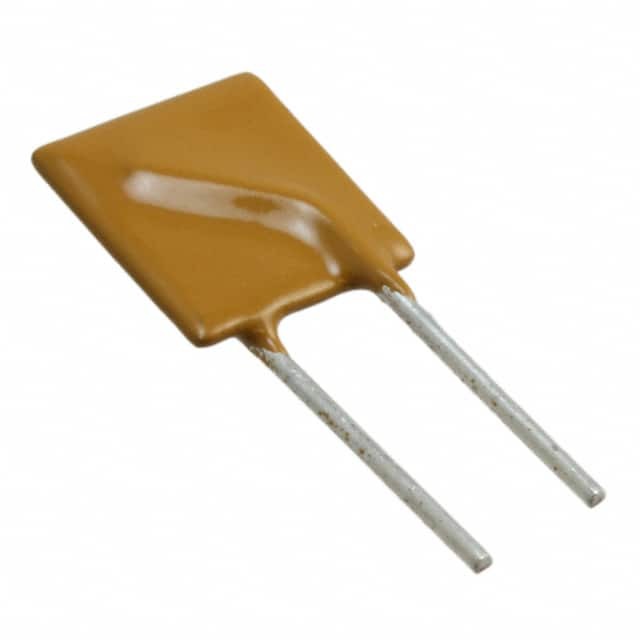

MF-RX110/72-0

SKU: 94296

Manufacturer: Bourns

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 72V 40A 1.5W 8.2s 0.15Ohm Radial 10.84 X 3.1 X 16.84mm Bag Automotive

1630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Yes
PPAP	Unknown
Voltage Rating-Max	72V
Current Rating-Max(A)	40
Hold Current (A)	1.1
Trip Current (A)	2.2
Minimum Initial Resistance (Ohm)	0.15
Maximum Initial Resistance (Ohm)	0.25
Maximum Post Trip Resistance (Ohm)	0.38
Typical Power Dissipation (W)	1.5
Maximum Trip Time (s)	8.2@5.5A
Terminal Form	Radial
Terminal Pitch (mm)	5.1(Nom)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bag
Size (mm)	10.84 X 3.1 X 16.84
Wire Form	Straight
Lead Diameter (mm)	0.81
Length (mm)	10.84(Max)
Depth (mm)	3.1(Max)
Height (mm)	16.84(Max)
Seated Plane Height (mm)	16.84(Max)
