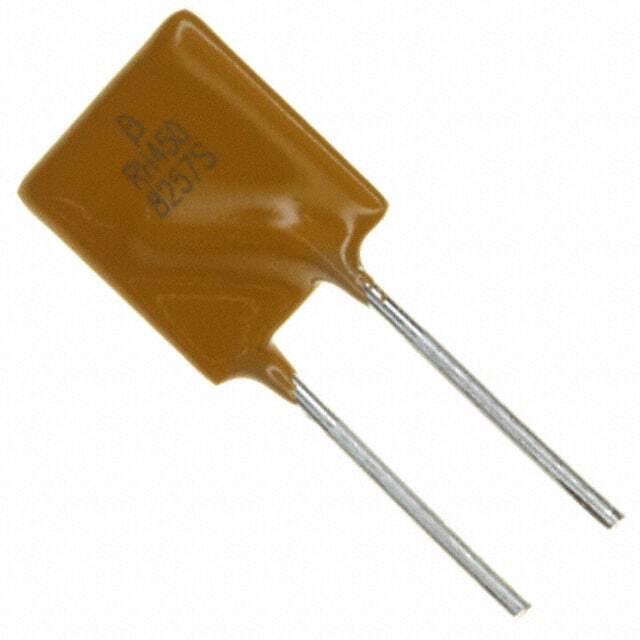

MF-RHT450-2

SKU: 34697

Manufacturer: Bourns

PTC Resettable Fuse 4.5A(hold) 7.8A(trip) 16V 100A 3.6W 3s 0.022Ohm Radial 10.4 X 3 X 15.6mm T/R Automotive

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Yes
PPAP	Yes
Voltage Rating-Max	16V
Current Rating-Max(A)	100
Hold Current (A)	4.5
Trip Current (A)	7.8
Minimum Initial Resistance (Ohm)	0.022
Maximum Post Trip Resistance (Ohm)	0.054
Typical Power Dissipation (W)	3.6
Maximum Trip Time (s)	3@22.5A
Terminal Form	Radial
Terminal Pitch (mm)	5.1(Nom)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	10.4 X 3 X 15.6
Wire Form	Straight
Lead Diameter (mm)	0.81(Nom)
Length (mm)	10.4(Max)
Depth (mm)	3(Max)
Height (mm)	15.6(Max)
Seated Plane Height (mm)	15.6(Max)
