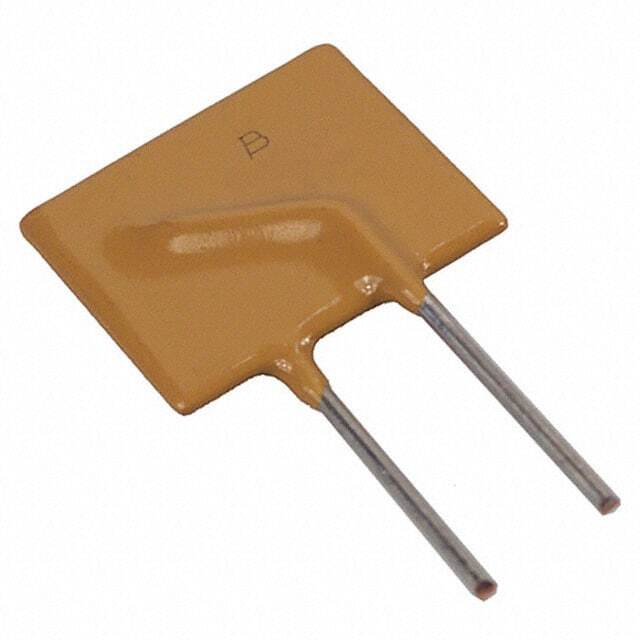

MF-R400-0-99

SKU: 140888

Manufacturer: Bourns

PTC Resettable Fuse 4A(hold) 8A(trip) 30V 40A 2.5W 12.7s 0.01Ohm Radial 14.4 X 3 X 24.8mm Bag Automotive

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.10.00.40
Automotive	Yes
PPAP	Unknown
Voltage Rating-Max	30V
Current Rating-Max(A)	40
Hold Current (A)	4
Trip Current (A)	8
Minimum Initial Resistance (Ohm)	0.01
Maximum Initial Resistance (Ohm)	0.03
Maximum Post Trip Resistance (Ohm)	0.05
Typical Power Dissipation (W)	2.5
Maximum Trip Time (s)	12.7@20A
Terminal Form	Radial
Terminal Pitch (mm)	5.1
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bag
Size (mm)	14.4 X 3 X 24.8
Wire Form	Straight
Lead Diameter (mm)	0.81
Length (mm)	14.4(Max)
Depth (mm)	3(Max)
Height (mm)	24.8(Max)
Seated Plane Height (mm)	24.8(Max)
