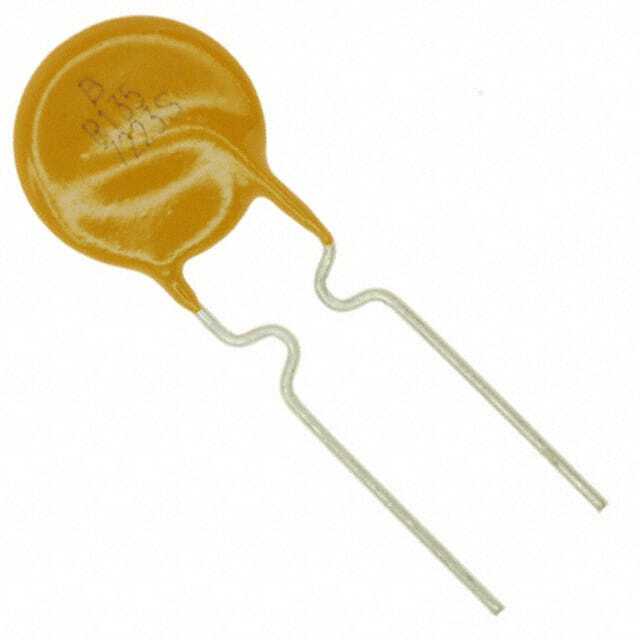

MF-R135-2-99

SKU: 115595

Manufacturer: Bourns

PTC Resettable Fuse 1.35A(hold) 2.7A(trip) 30V 40A 0.8W 7.3s 0.065Ohm Radial 8.9 X 3mm T/R Automotive

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8533.40.80.70
Automotive	Yes
PPAP	Unknown
Voltage Rating-Max	30V
Current Rating-Max(A)	40
Hold Current (A)	1.35
Trip Current (A)	2.7
Minimum Initial Resistance (Ohm)	0.065
Maximum Initial Resistance (Ohm)	0.115
Maximum Post Trip Resistance (Ohm)	0.17
Typical Power Dissipation (W)	0.8
Maximum Trip Time (s)	7.3@6.75A
Terminal Form	Radial
Terminal Pitch (mm)	5.1
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Size (mm)	8.9 X 3
Wire Form	Inside Crimp Standoff
Lead Diameter (mm)	0.51
Product Diameter (mm)	8.9(Max)
Depth (mm)	3(Max)
Seated Plane Height (mm)	18.9(Max)
