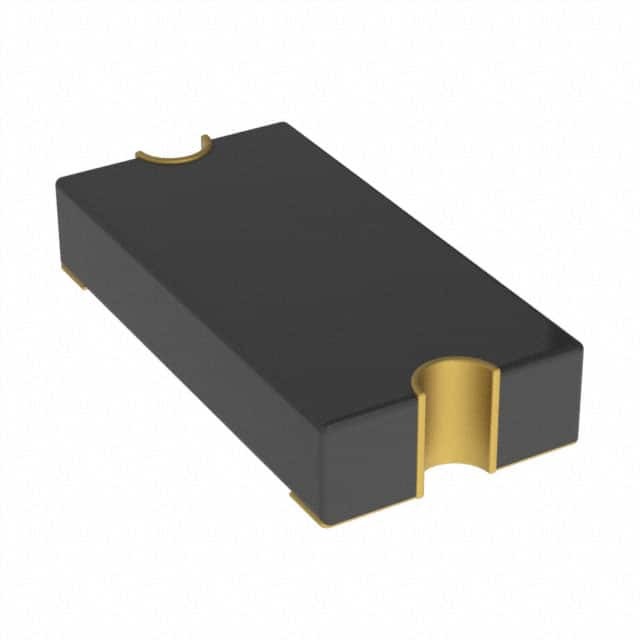

MF-NSMF200-2

SKU: 41812

Manufacturer: Bourns

PTC Resettable Fuse 2A(hold) 4A(trip) 6V 100A 0.7W 1s 0.02Ohm SMD Solder Pad 1206 T/R Automotive

621620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Yes
PPAP	Yes
Voltage Rating-Max	6V
Current Rating-Max(A)	100
Hold Current (A)	2
Trip Current (A)	4
Minimum Initial Resistance (Ohm)	0.02
Maximum Post Trip Resistance (Ohm)	0.085
Typical Power Dissipation (W)	0.7
Maximum Trip Time (s)	1@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	3.5 X 1.8 X 1.6
Length (mm)	3.5(Max)
Depth (mm)	1.8(Max)
Height (mm)	1.6(Max)
Case Code - in	1206
