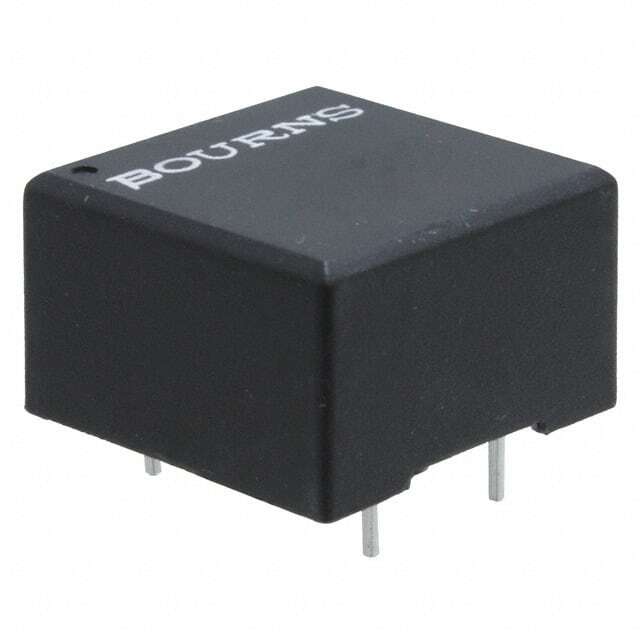

LM-NP-1001-B1L

SKU: 12405

Manufacturer: Bourns

Audio Transformer 1:1 6500VDC 66Ohm Prim. DCR 66Ohm Sec. DCR 8 Terminal PC Pin Thru-Hole

2580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Transformer Type	Line Matching Audio Transformer
Primary Side Impedance (Ohm)	600
Secondary Side Impedance (Ohm)	600
Maximum DCR Primary Side (Ohm)	66
Maximum DCR Secondary Side (Ohm)	66
High Potential	6500VDC
Minimum Return Loss (dB)	10
Maximum Insertion Loss (dB)	1.5
Lead Style	PC Pin
Terminal Form	Through Hole
Number of Terminals	8
Frequency Response	-0.3dB
Operating Temperature-Min	-10
Operating Temperature-Max	60
Length (mm)	17.7
Depth (mm)	17.7
