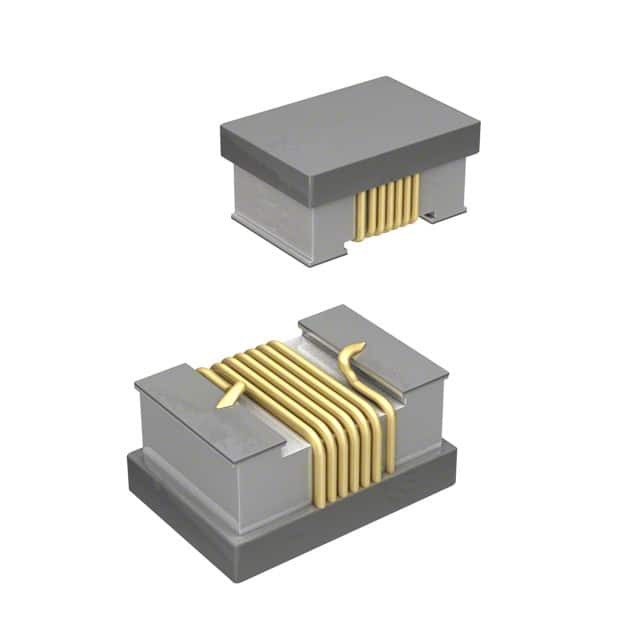

CW201212-27NJ

SKU: 117383

Manufacturer: Bourns

Inductor RF Wirewound 0.027uH 5% 250MHz 55Q-Factor Ceramic 0.5A 0.25Ohm DCR 0805 T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Core Body Material	Ceramic
Inductance (H)	0.027u
Tolerance	5%
Inductance Test Frequency (Hz)	250M
Maximum DC Current (A)	0.5
Maximum DC Resistance (Ohm)	0.25
Minimum Quality Factor	55
Quality Test Frequency (Hz)	500M
Minimum Self Resonant Frequency (Hz)	2500M
Number of Terminals	2
Case Size	0805
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.2
Terminal Form	Surface Mount
Depth (mm)	1.45
