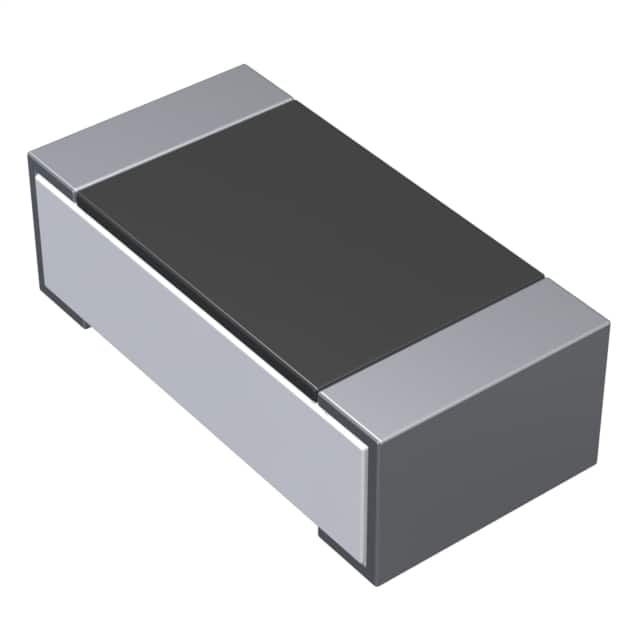

CR0603-FX-1000ELF

SKU: 30208

Manufacturer: Bourns

Res Thick Film 0603 100 Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R

3040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
Automotive	No
PPAP	No
Resistance Value (Ohm)	100
Tolerance	1%
Voltage Rating-Max (V)	75
Current Sensing	No
Power Rating (W)	0.1 (1/10)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	70 to 155
Fail Safe Fusible Resistor	No
Anti-Surge	No
Anti-Sulfurated	No
Case Size	0603
Terminal Form	Pad
Number of Terminals	2
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	0603
Length (mm)	1.6
Depth (mm)	0.8
Height (mm)	0.45
Length Tolerance (mm)	±0.1
Depth Tolerance (mm)	±0.1
Height Tolerance (mm)	±0.1
