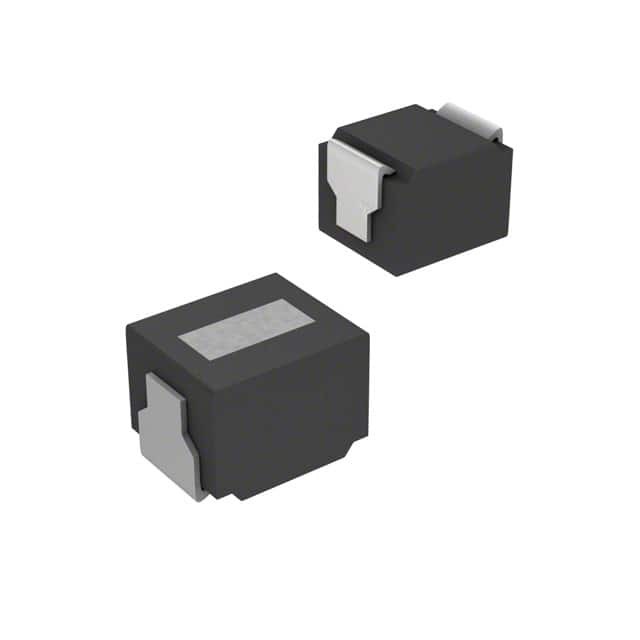

CM322522-R15ML

SKU: 86753

Manufacturer: Bourns

Inductor General Purpose Chip Wirewound 0.15uH 20% 25.2MHz 30Q-Factor Ferrite 0.45A 0.25Ohm DCR 1210 T/R

1090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	General Purpose Chip
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	0.15u
Tolerance	20%
Inductance Test Frequency (Hz)	25.2M
Maximum DC Current (A)	0.45
Maximum DC Resistance (Ohm)	0.25
Minimum Quality Factor	30
Quality Test Frequency (Hz)	25.2M
Minimum Self Resonant Frequency (Hz)	450M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.6
Terminal Form	Surface Mount
Depth (mm)	2.7
