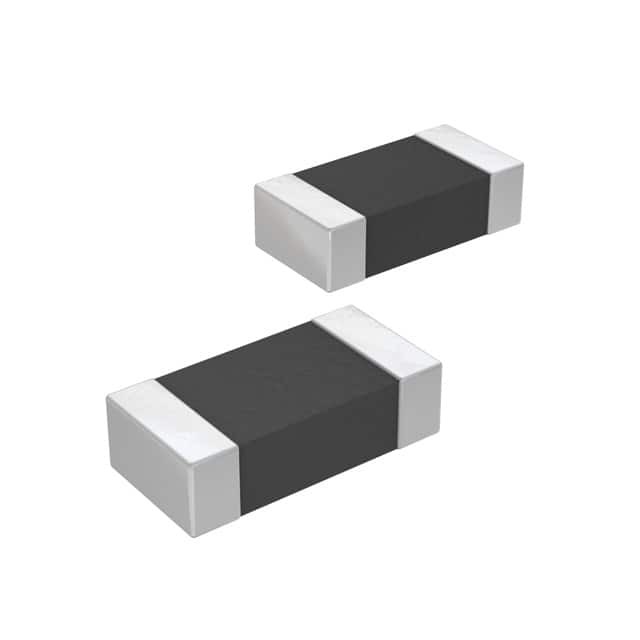

CG0603MLA-26KE Bourns

CG0603MLA-26KE

SKU: 136341

Manufacturer: Bourns

Var MOV 20VAC/26VDC 30A 42V 0603 SMD T/R

Download sample

Request Free Samples

4070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Technology	Metal Oxide
Varistor Voltage (V)	42
Maximum AC Voltage Rating (V)	20
Maximum DC Voltage Rating (V)	26
Clamping Voltage (V)	70
Tolerance Voltage	10%
Clamping Current (A)	1
Maximum Surge Current (A)	30
Capacitance Value	100pF
Energy (J)	0.1
Operating Temperature-Min	-55
Operating Temperature-Max	125
Size Code	0603
Packing Method	Tape and Reel
Length (mm)	1
Depth (mm)	0.8
Height (mm)	0.8
