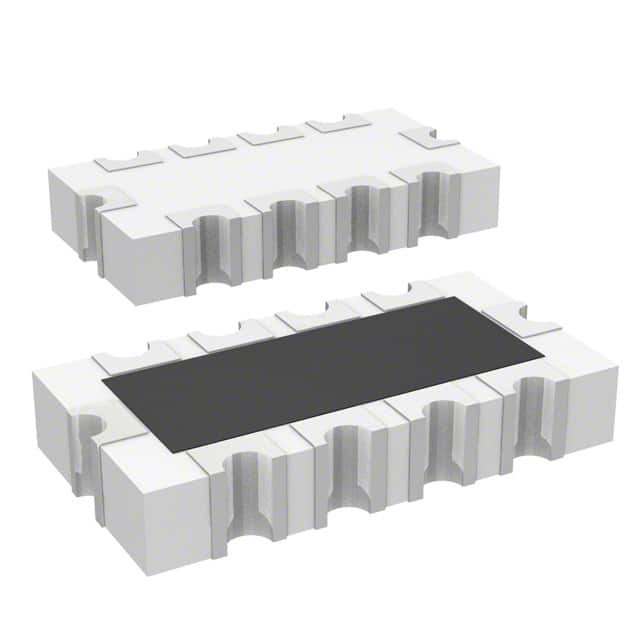

CAT25-332JALF

SKU: 152756

Manufacturer: Bourns

Res Thick Film Array 3.3K Ohm 5% ±200ppm/°C BUS 10-Pin 1608(8 X 0804) Concave SMD T/R

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8533.10.00.20
Automotive	No
PPAP	No
Type	Array
Number of Resistors	8
Resistance Value (Ohm)	3.3K
Tolerance	5%
Voltage Rating-Max (V)	25
Power Rating per Resistor (W)	0.063 (1/16)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±200
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	BUS
Case Size	1608
Case Size per Element	0804
Terminal Form	Concave
Number of Terminals	10
Terminal Pitch (mm)	0.8
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1608(8 X 0804)
Length (mm)	4
Depth (mm)	2.1
Height (mm)	0.55
