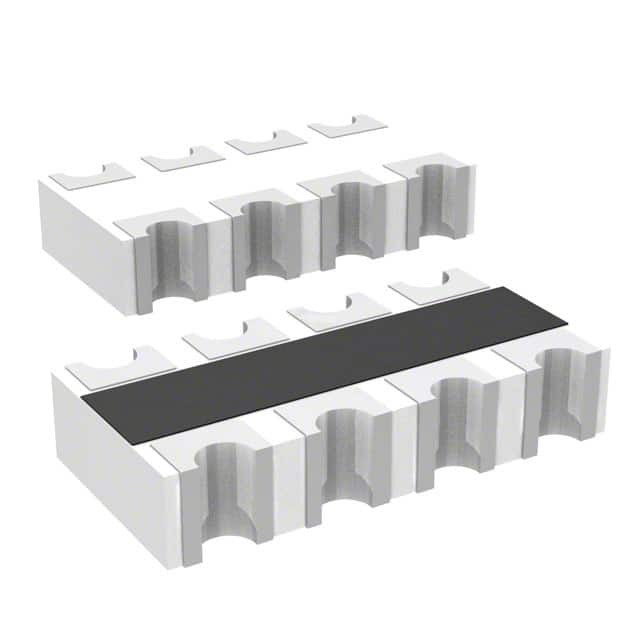

CAT16-102J4LF

SKU: 143420

Manufacturer: Bourns

Res Thick Film Array 1K Ohm 5% 0.25W(1/4W) ±200ppm/°C ISOL 8-Pin 1206(4 X 0603) Concave SMD T/R

1270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.50
Automotive	No
PPAP	No
Type	Array
Number of Resistors	4
Resistance Value (Ohm)	1K
Tolerance	5%
Voltage Rating-Max (V)	50
Power Rating (W)	0.25 (1/4)
Power Rating per Resistor (W)	0.063 (1/16)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±200
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Size	1206
Case Size per Element	0603
Terminal Form	Concave
Number of Terminals	8
Terminal Pitch (mm)	0.8
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1206(4 X 0603)
Length (mm)	3.2
Depth (mm)	1.55
Height (mm)	0.5
Length Tolerance (mm)	±0.2
Depth Tolerance (mm)	±0.25
Height Tolerance (mm)	±0.1
