CAT16-000J4GLF

SKU: 115010

Manufacturer: Bourns

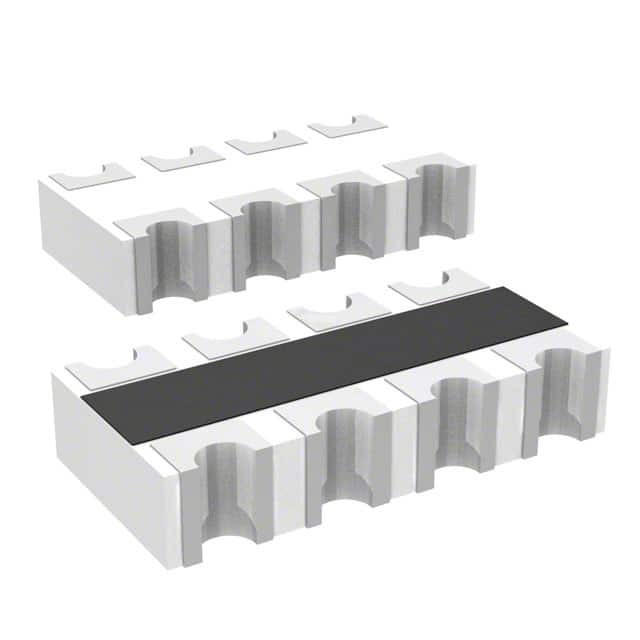

Res Thick Film Array 0 Ohm ISOL 8-Pin 1206(4 X 0603) Concave SMD T/R

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
Automotive	No
PPAP	No
Type	Array
Number of Resistors	4
Resistance Value (Ohm)	0
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Size	1206
Case Size per Element	0603
Terminal Form	Concave
Number of Terminals	8
Terminal Pitch (mm)	0.8
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1206(4 X 0603)
Length (mm)	3.2
Depth (mm)	1.55
Height (mm)	0.5
